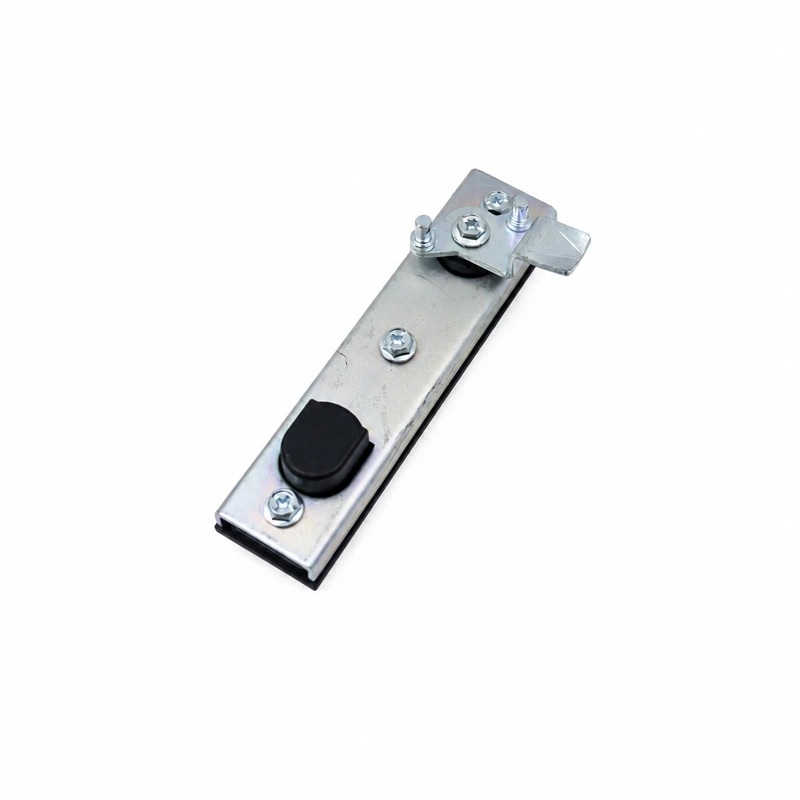

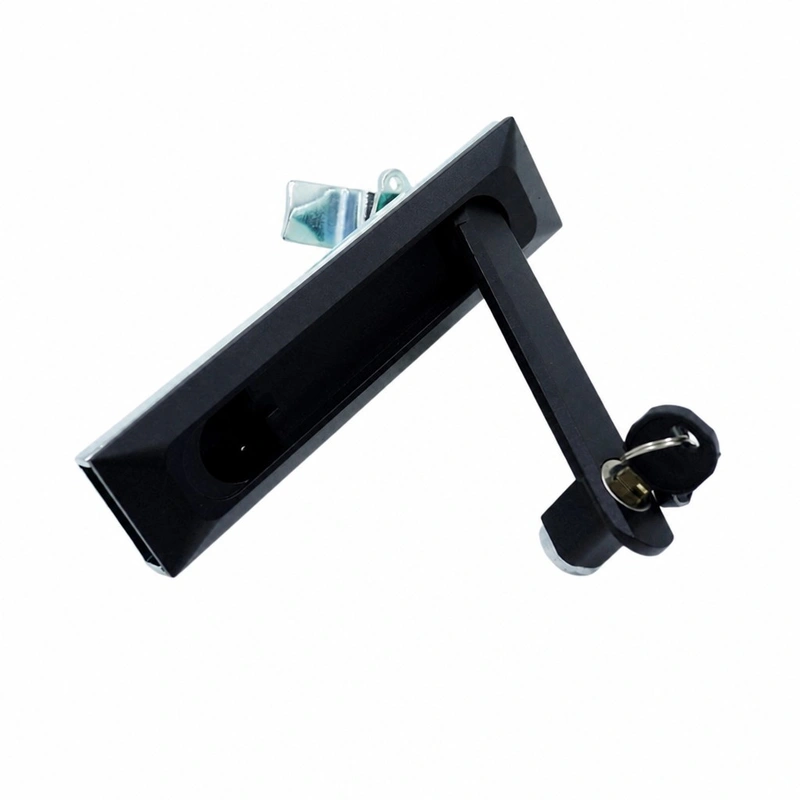

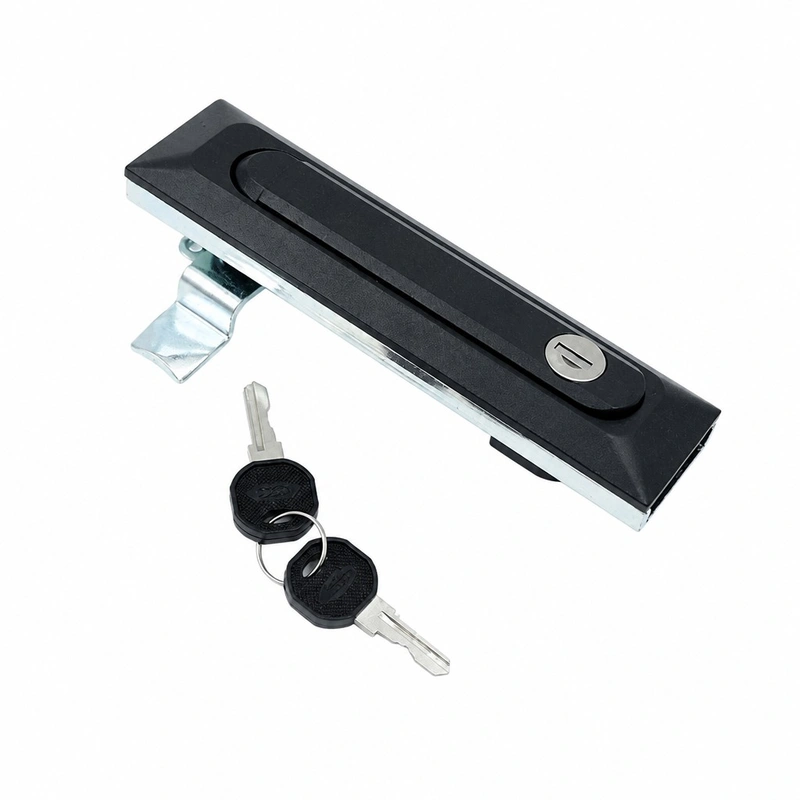

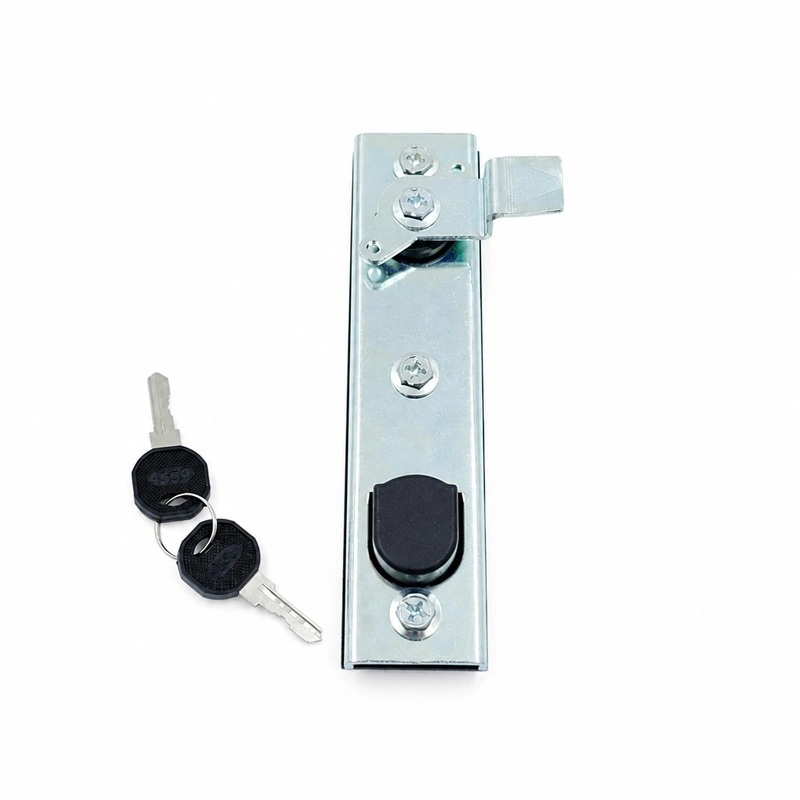

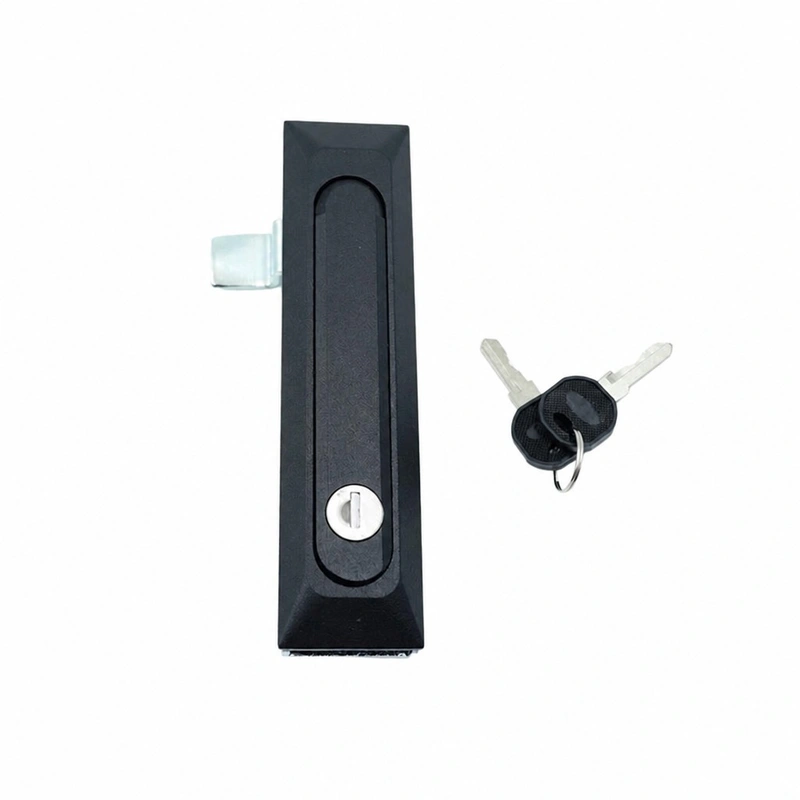

Zinc Alloy Panel Lock MS861-1 Industrial enclosure latch

Product name: Plane lock Type: MS861-1 Material :Zinc alloy + SS304 Pivot Finish: Sand black Open method Turn the key 180° to the left, pull up the handle, then turn it 90° to the right(adjust the positioning plate as needed to achieve left-hand opening with left-hand rotation) Applicable door panel Thickness: 1-4mm
get a quote

Zinc Alloy Panel Lock MS861-1

Product name: Plane lock
Type: MS861-1
Material :Zinc alloy + SS304 Pivot
Finish: Sand black
Open method Turn the key 180° to the left, pull up the handle, then turn it 90° to the right(adjust the positioning plate as needed to achieve left-hand opening with left-hand rotation)
Applicable door panel Thickness: 1-4mm

Key Features

  1. Durable Construction: Zinc alloy body ensures high strength and longevity.
  2. Corrosion Resistance: Zinc-plated components  enhance durability.
  3. Aesthetic Appeal:  matte black finishes provide a modern and professional look.
  4. Wide Compatibility: Suitable for door thicknesses from 1mm to 4mm.
  5. Precision Design: Lock plate opening size: 8×8mm, ensuring easy installation and secure fit.
    • Model Number: MS861-1
    • Material: Zinc alloy body,SS304 pivot, zinc-plated mounting plate, lock plate
    • Surface Finish:  matte black
    • Door Thickness Compatibility: 1~4mm

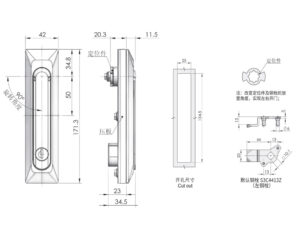

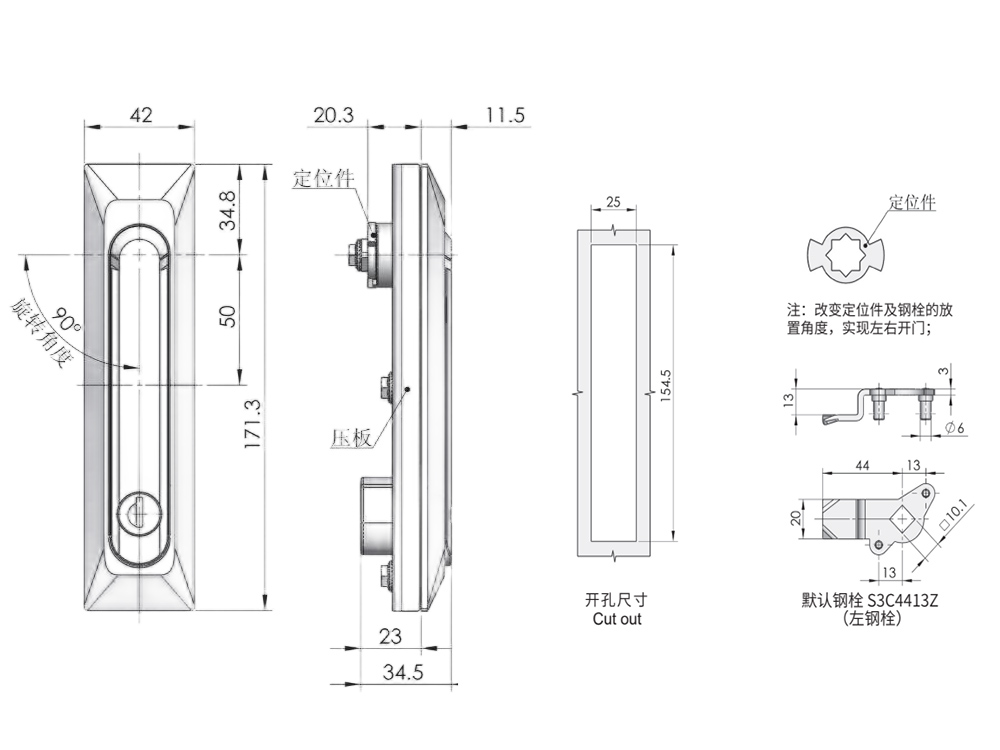

    • Dimensions:
      • Length: 171.3mm
      • Width: 42mm
      • Height: 23mm
    • Mounting Hole Specifications:
      • Hole spacing: 154.5mm*25mm

    Applications

    • Industrial enclosures and cabinets.
    • Utility boxes and access panels.
    • Lightweight security doors and gates.
    • Electrical and mechanical equipment requiring robust latches.

    Keywords

    • MS861-1  latch
    • Zinc alloy latch
    • Sand chrome finish latch
    • Matte black finish latch
    • Heavy-duty latch
    • Corrosion-resistant latch
    • Door latch for 1~4mm thickness
    • Utility box latch
    • Access panel latch
    • High-strength zinc alloy latch
    • Industrial enclosure latch
    • Precision-designed latch
    • Secure mounting latch

    htlock factory  htlock factoryhtlock Application

FAQ

How long can i get the feedbacks after we sent the inquiry?

We will reply you within 12 hours in working day.

We are a factory with more than 24 years of manufacturing experiences. The factory is located in WENZHOU City, Zhejiang Province, China.All our clients, from home or abroad, are warmly welcome to visit us.
Providing high quality locking and hinging access control systems and components for Electrical Cabinets and Enclosures, I T & Network enclosure, Industrial Machine Equipment, Automotive Industry, A T M & Vending Machine, Food industry Equipment and other industrial hardware products.

Yes, We have professional R &D team to support custom design products, We will also use 3D printer to make
the prototype quickly.

Yes, besides the mechanical locks possibility, we also offer standard parts for Vehicle, transportation and industrial applications, intelligent office equipment, kitchen appliances, medical care, and so on.

Please advise us your courier account no. Such as DHL/TNT/FEDEX. Free samples will be ready within 3 days.
Payment Terms: T/T,LC at sight
We always keep hot-selling goods in stocks. When you place the order, we could send you within 3days. If no ready goods,we could finish within 15-20days depending items.
