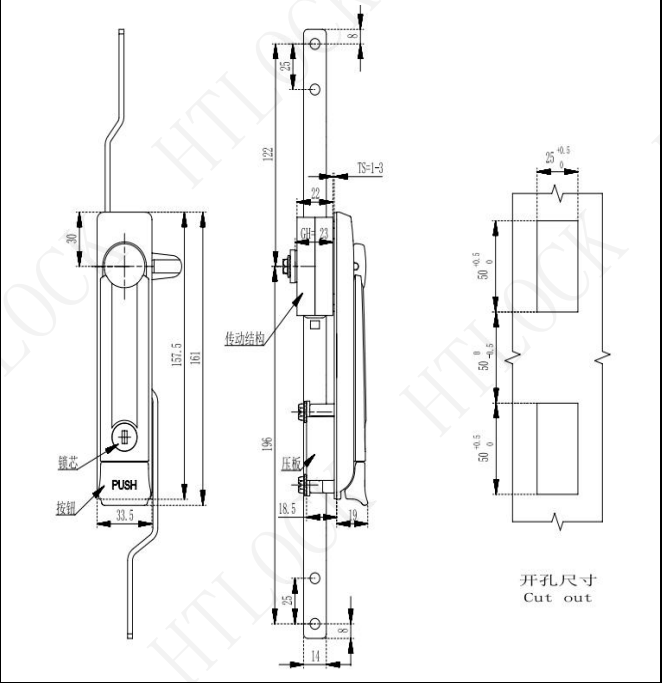

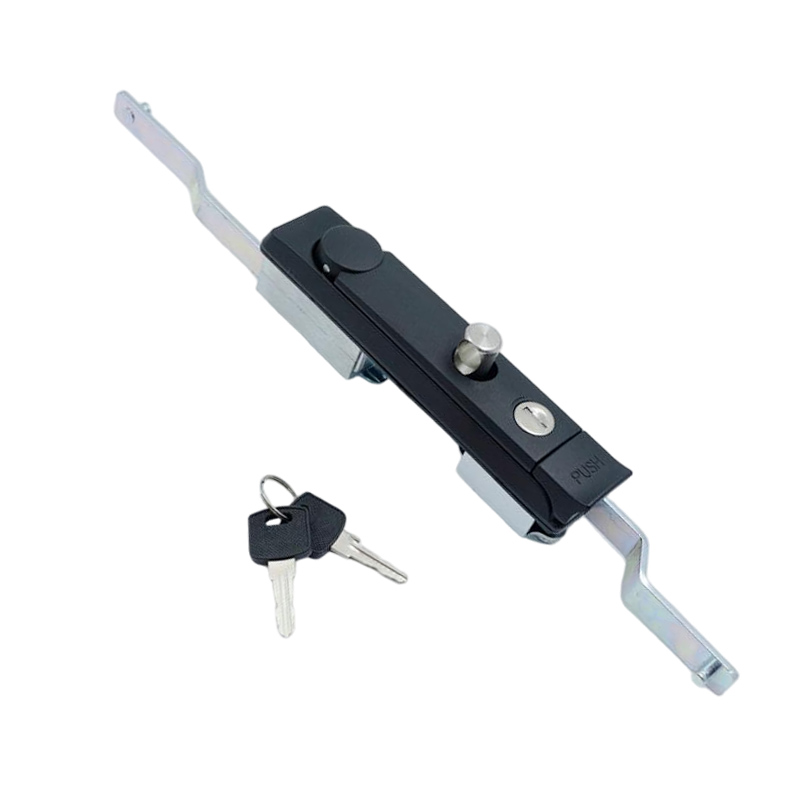

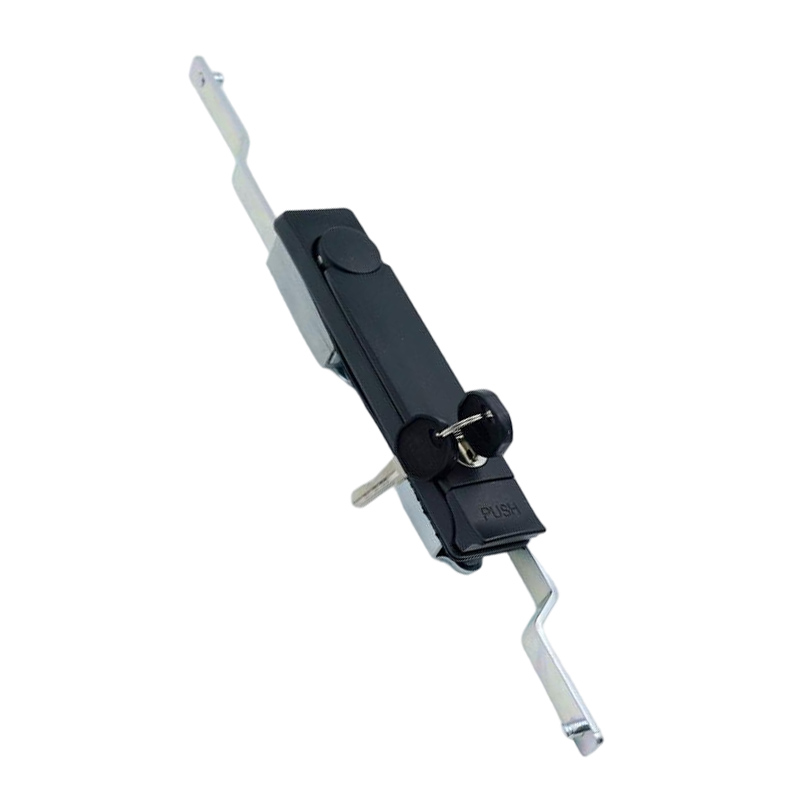

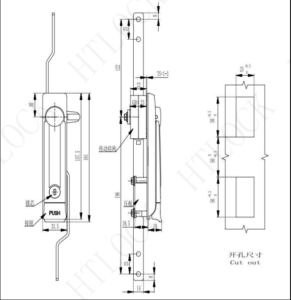

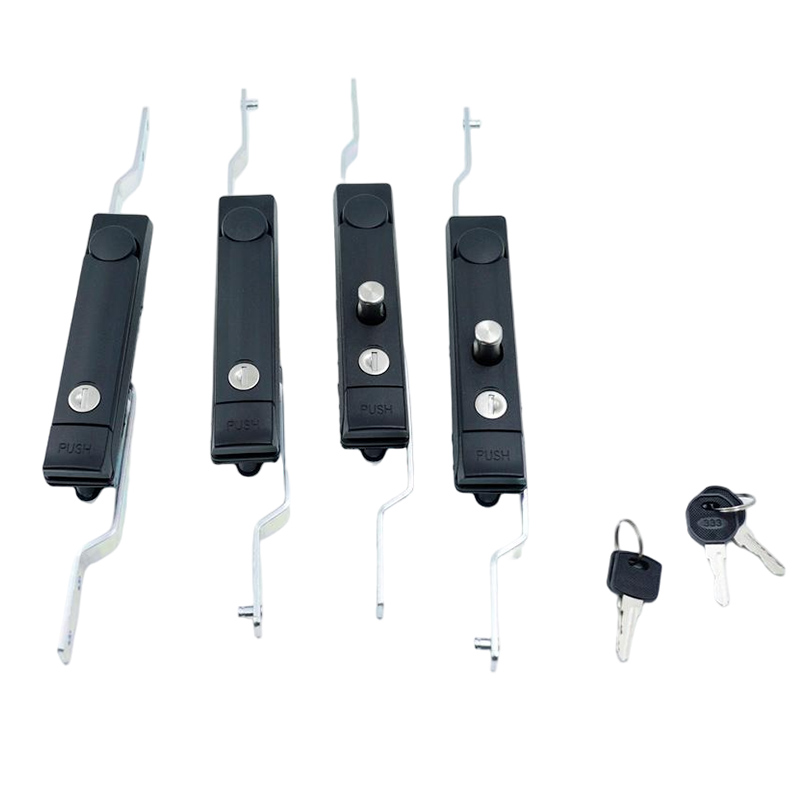

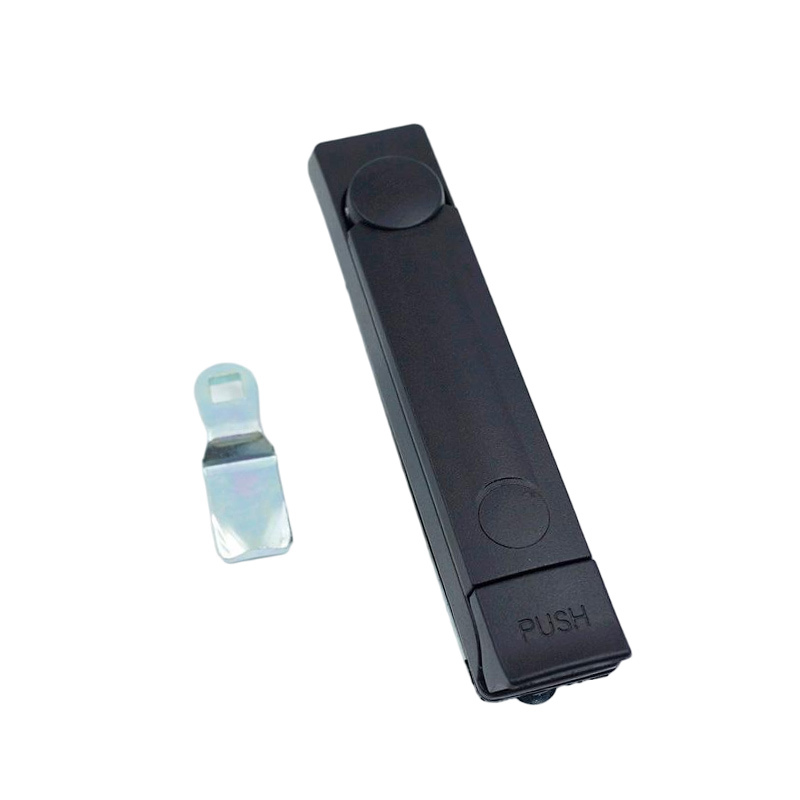

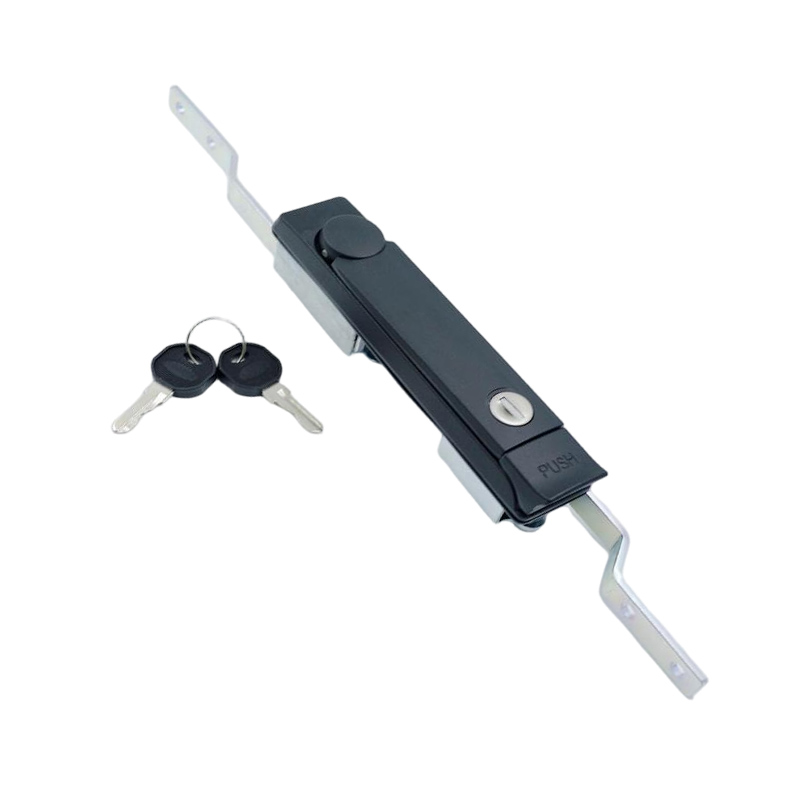

Multi-point Lock Rod control Lock MS832

Rotating the handle at 90 degrees, through the transmission mechanism to open or close; Spigot height: 23mm, Panel thickness : 1.0-3.0mm, Telescopic distance:15mm; Transmission body use as drive plate,with waterproof sealing;
get a quote

Multi-point Lock Rod control Lock MS832

  • Rotating the handle at 90 degrees, through the transmission mechanism to open or close;
    Spigot height: 23 mm, Panel thickness : 1.0-3.0 mm, Telescopic distance : 15 mm;
    Transmission body use as drive plate,with waterproof sealing;
    Transmission strips position and pawls direction suitable for left or right opening;
    Material:
    Body and Transmission shell: Zinc Alloy(ZDC);
    Pawl and connecting rod: Carbon Steel
    Finish:
    Body and Transmission shell: Black Painted;
    Pawl and connecting rod: Zinc Plated
  • MOQ: no request
  • Lead Time:7~15 days
  • Application:Control box;Power box;Communication cabinet,etc.
  • htlock factory htlock factory htlock Application

FAQ

How long can i get the feedbacks after we sent the inquiry?

We will reply you within 12 hours in working day.

We are a factory with more than 24 years of manufacturing experiences. The factory is located in WENZHOU City, Zhejiang Province, China.All our clients, from home or abroad, are warmly welcome to visit us.
Providing high quality locking and hinging access control systems and components for Electrical Cabinets and Enclosures, I T & Network enclosure, Industrial Machine Equipment, Automotive Industry, A T M & Vending Machine, Food industry Equipment and other industrial hardware products.

Yes, We have professional R &D team to support custom design products, We will also use 3D printer to make
the prototype quickly.

Yes, besides the mechanical locks possibility, we also offer standard parts for Vehicle, transportation and industrial applications, intelligent office equipment, kitchen appliances, medical care, and so on.

Please advise us your courier account no. Such as DHL/TNT/FEDEX. Free samples will be ready within 3 days.
Payment Terms: T/T,LC at sight
We always keep hot-selling goods in stocks. When you place the order, we could send you within 3days. If no ready goods,we could finish within 15-20days depending items.
