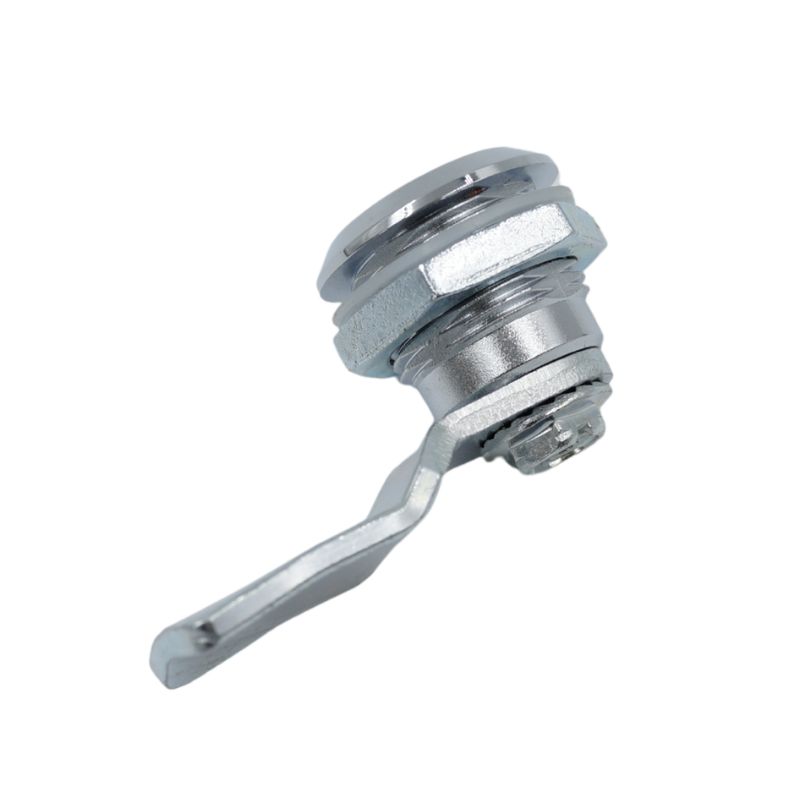

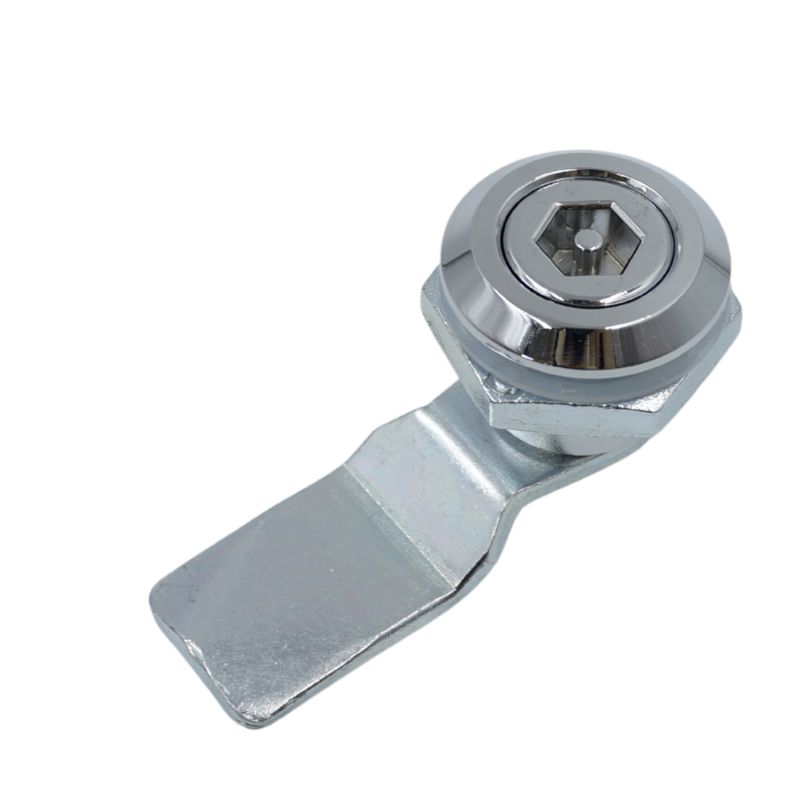

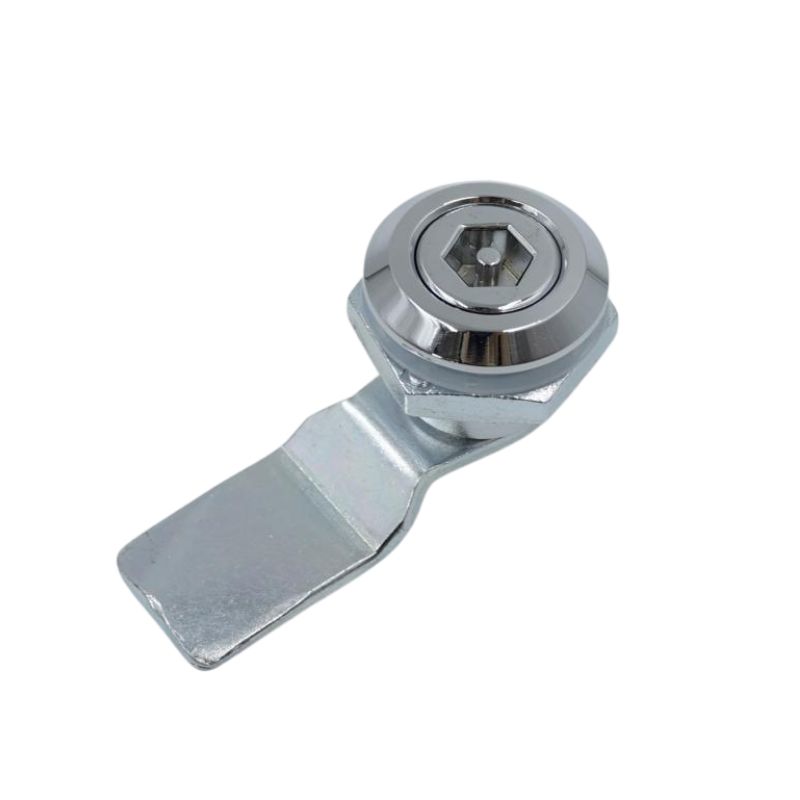

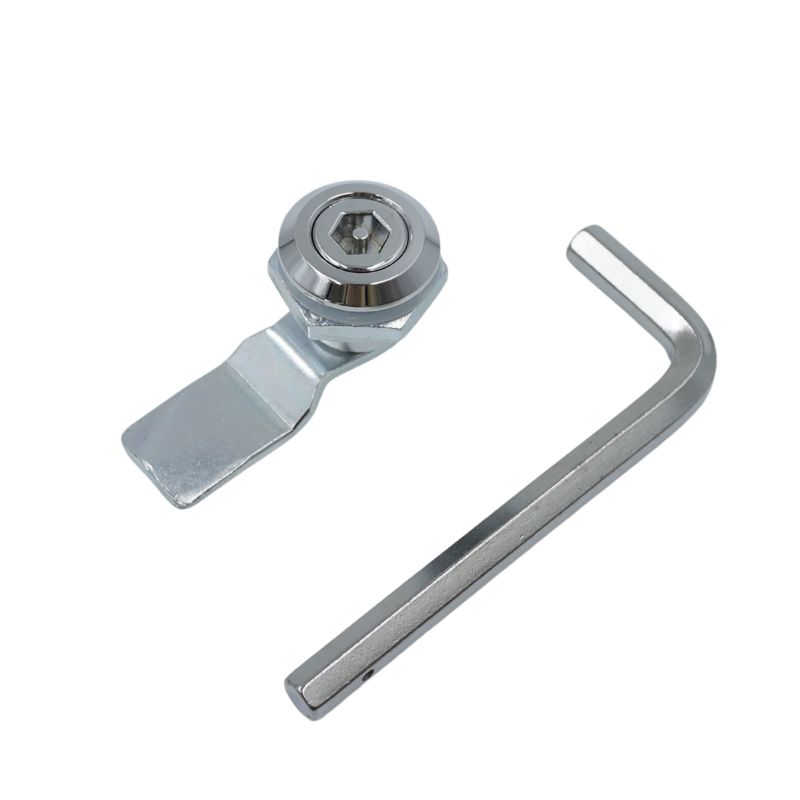

Cam Latch MS705-18 Zinc Alloy 90-Degree Locking for cabinet

MS705-18 cam latch is a premium locking solution designed for secure access to industrial panels, enclosures, and cabinets. Its 90-degree rotational mechanism ensures efficient operation, while the polished zinc alloy construction enhances durability and corrosion resistance. This cam latch is suitable for demanding environments, providing reliable and ergonomic functionality.
get a quote

Materials and Finish

  • Base and Lock Core: Zinc alloy for excellent corrosion resistance and strength.
  • Cam: Carbon steel (model: S1B4507) for enhanced durability.
  • Surface Treatment: Polished zinc alloy finish for a sleek, professional appearance.

Surface Finish and Appearance

  • Bright polished finish on the base and lock core for a high-quality and modern look.

    Key Features

    • 90-degree rotation for effective locking and unlocking.
    • Durable zinc alloy construction with corrosion resistance.
    • Ergonomic design for comfortable and efficient operation.
      • Maximum Static Load: 270N
      • Maximum Input Torque: 9Nm
      • Recommended Screw Torque: 20Nm

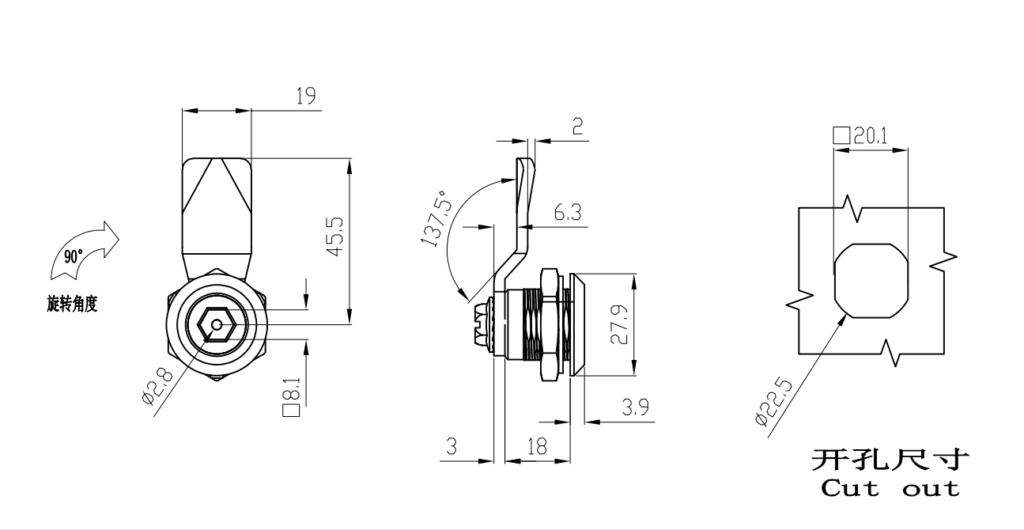

      • Dimensions:
        • Cutout size: 20.1mm square, Ø22.5mm circular
        • Cam length (L): 45mm ± 1mm
        • Grip height (GH): 18mm

      Applications

      • Electrical panels and enclosures
      • Machinery cabinets
      • Industrial control panels

      Keywords

      MS705-18, locking cam latch, zinc alloy cam latch, polished cam latch, 90-degree cam latch, industrial locking system

FAQ

How long can i get the feedbacks after we sent the inquiry?

We will reply you within 12 hours in working day.

We are a factory with more than 24 years of manufacturing experiences. The factory is located in WENZHOU City, Zhejiang Province, China.All our clients, from home or abroad, are warmly welcome to visit us.
Providing high quality locking and hinging access control systems and components for Electrical Cabinets and Enclosures, I T & Network enclosure, Industrial Machine Equipment, Automotive Industry, A T M & Vending Machine, Food industry Equipment and other industrial hardware products.

Yes, We have professional R &D team to support custom design products, We will also use 3D printer to make
the prototype quickly.

Yes, besides the mechanical locks possibility, we also offer standard parts for Vehicle, transportation and industrial applications, intelligent office equipment, kitchen appliances, medical care, and so on.

Please advise us your courier account no. Such as DHL/TNT/FEDEX. Free samples will be ready within 3 days.
Payment Terms: T/T,LC at sight
We always keep hot-selling goods in stocks. When you place the order, we could send you within 3days. If no ready goods,we could finish within 15-20days depending items.
