Compression Latch MS309-3
Compression Latch MS309-3
Compression Latch MS309-3
Compression Latch MS309-3
Compression Latch MS309-3
Compression Latch MS309-3

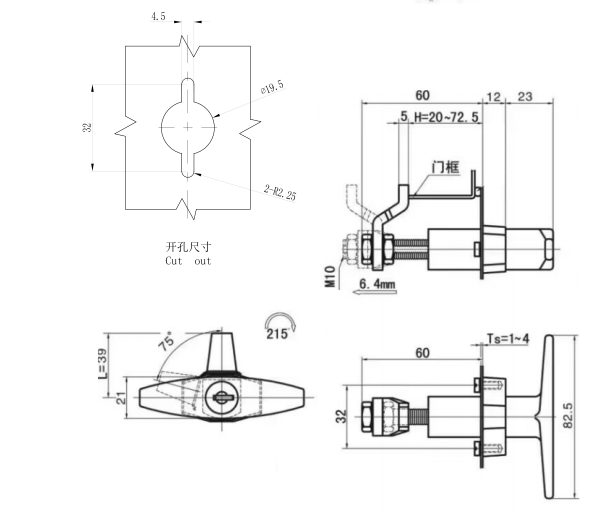

Compression Latch MS309-3 drawing

Compression Latch MS309-3 Large Size Zinc Alloy T-Handle

According Southco E3-31-25，Compression latches provide mechanical advantage, ensuring tight, robust vibration resistant door closure to seal out water and dust in the most strenuous applications. The smooth operation of the VISE ACTION® design aligns the cam behind the frame, then draws it straight up tight to prevent scraping against the frame, with a single continuous half-turn motion. Its compression action provides consistent 6.4 mm (.25”) pull-up for environmental sealing in gasketed applications, and helps reduce or eliminate noise and rattles caused by vibration. Over-center latching resists accidental opening due to shock or vibration.
get a quote

Zinc Alloy power coated T-Handle Lock /southco compression latch

Material Zinc Alloy
Finish Powder Coat
Color/Appearance Black
Access Restriction No Restriction
Grip Type Adjustable
Mounting Style Three Hole Mount
Head Style T-Handle
Series Standard
Min. Outer Panel Thickness (mm) 0.00
Max Outer Panel Thickness (mm) 4.00
Grip – Minimum (mm) 21.80
Grip – Maximum (mm) 37.30
Grip – Minimum (Cam Reversed) (mm) 49.00
Grip – Maximum (Cam Reversed) (mm) 64.80
Cam Attached Yes
Rotation Type A – Turn Clockwise to Latch
Applicaition Equipment cabinet, Distribution box,Electrical cabinet,etc.
Class Compression Latches
Size 20 mm

Compression Latch
