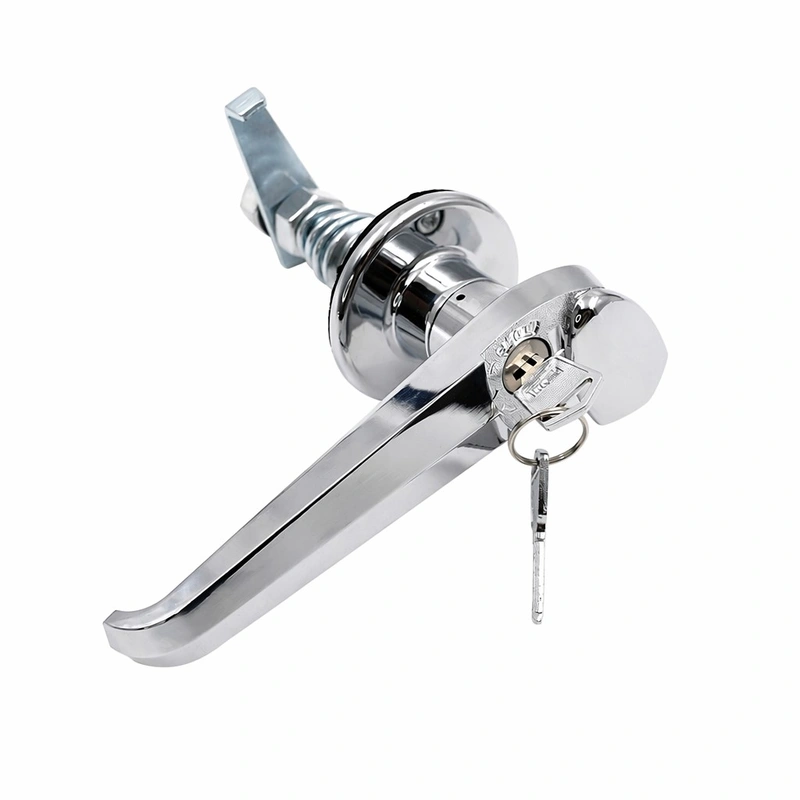

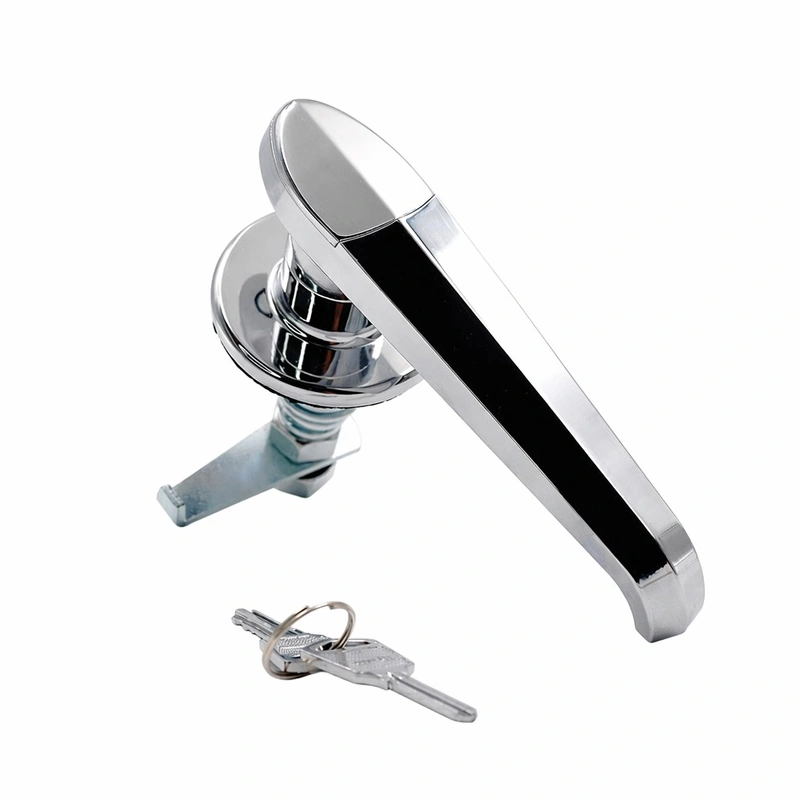

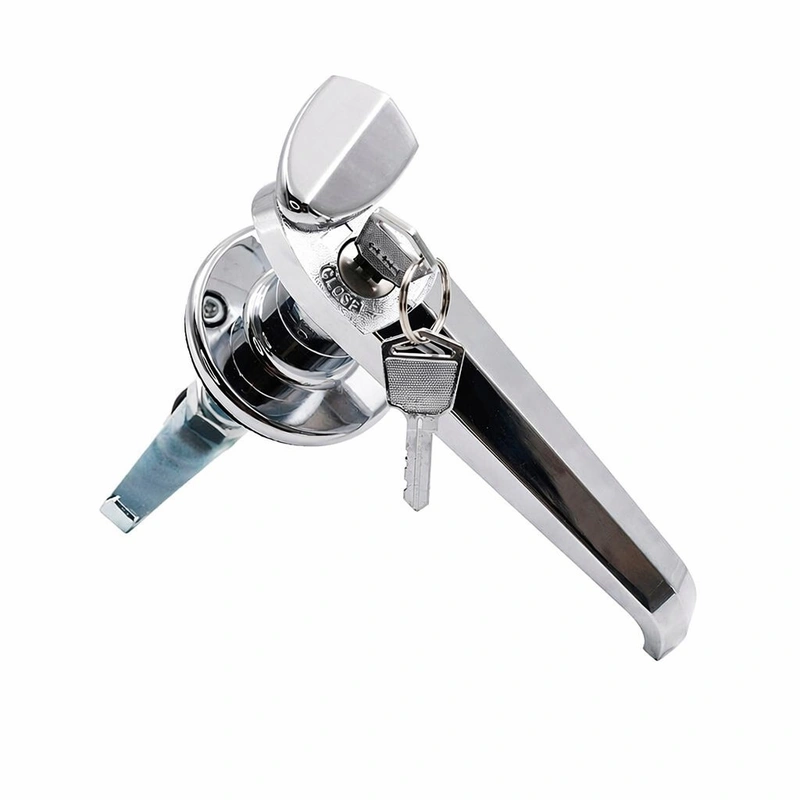

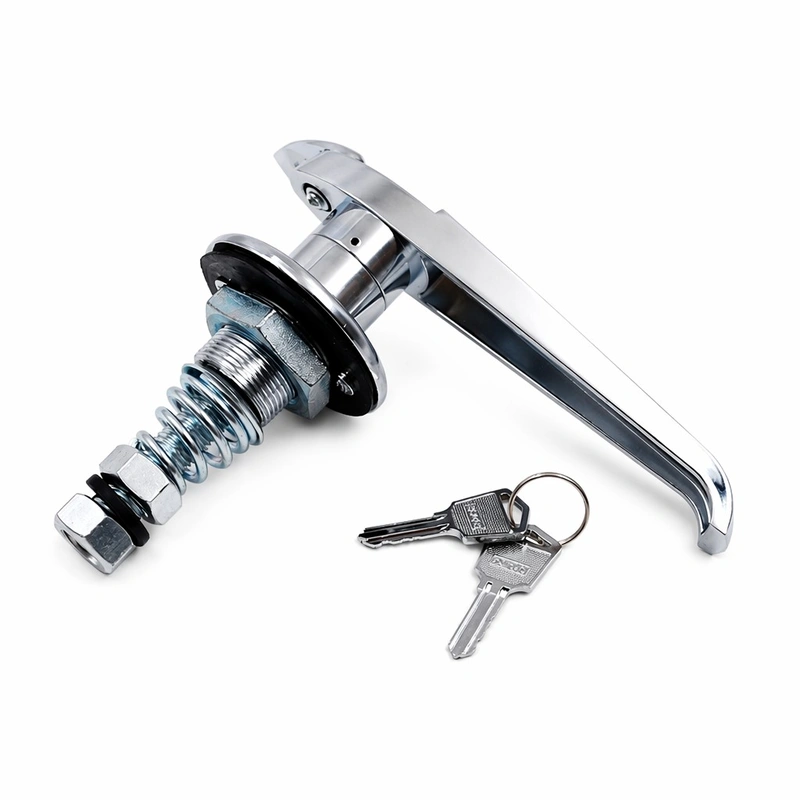

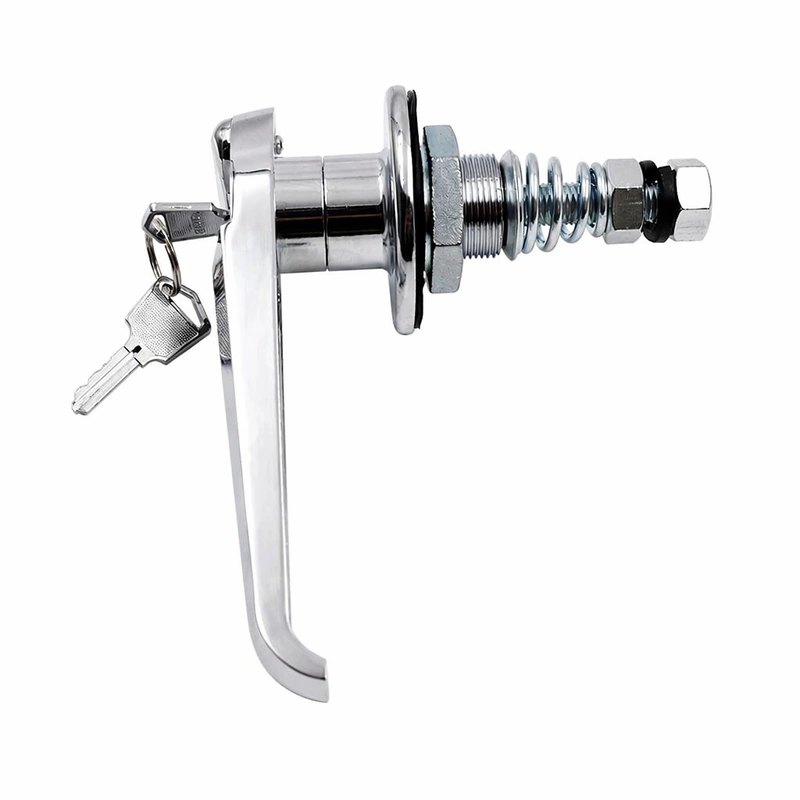

MS306-1-1 High strength zinc alloy T handle lock for Power box
Product features
1.Sturdy and durable
The surface is treated with high-quality bright chrome electroplating, which not only creates a brilliant luster and a modern industrial aesthetic, but also gives the lock exceptional resistance to corrosion, fingerprints, and scratches. Even after weathering and frequent operation, it retains its luster and texture, comprehensively enhancing the overall quality of the cabinet.
2.Convenient Operation
The Handle Lock MS306-1-1 is optimized for high-frequency, high-intensity daily operation. The ergonomic handle is carefully calculated and polished for a comfortable and natural grip. Whether worn by gloved hands or manually, it provides a precise and powerful grip, making opening and closing cabinet doors effortless. This significantly improves operational efficiency and effectively reduces operator fatigue.
3.IP65 protection level
The Handle Lock MS306-1-1 lock cylinder features a specially designed integrated dust cover, effectively blocking dust and debris from entering the lock cylinder without affecting smooth key insertion, preventing malfunctions caused by keyhole blockage. Its core sealing performance achieves the ultra-high IP65 protection rating, meaning it completely blocks dust ingress and can withstand low-pressure water jets from any direction. Whether exposed to coastal salt spray, factory dust, or outdoor torrential rain, the MS306-1-1 ensures dry and clean internal mechanisms and consistent performance, making it an ideal choice for applications such as outdoor cabinets, communication base stations, and power facilities.
Product Specifications
1.Material: Zinc alloy
2.Finish: Bright chrome
3.Opening method: After turning the key 180° clockwise, turn the handle 60° counterclockwise. Reverse the mounting base 180° to achieve clockwise rotation.
4.Applicable door panels: Thickness ≤ 10mm

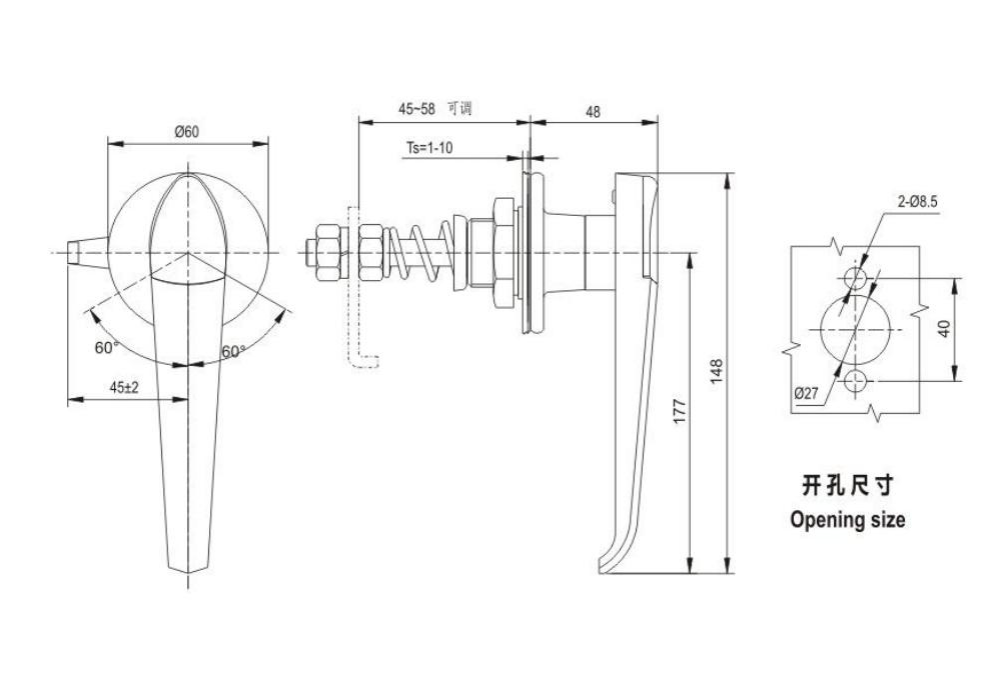

Specifications
