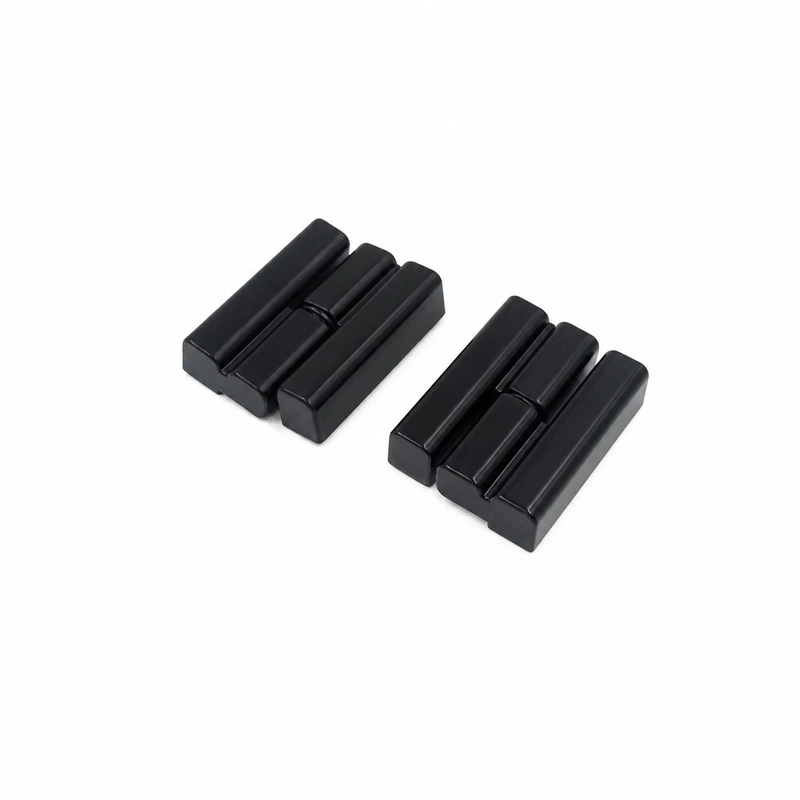

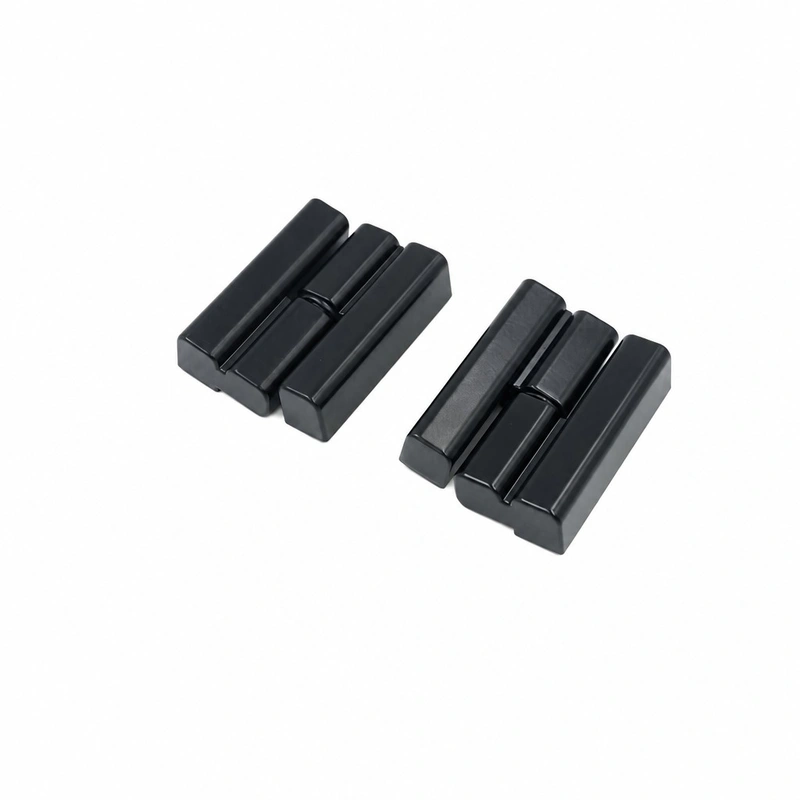

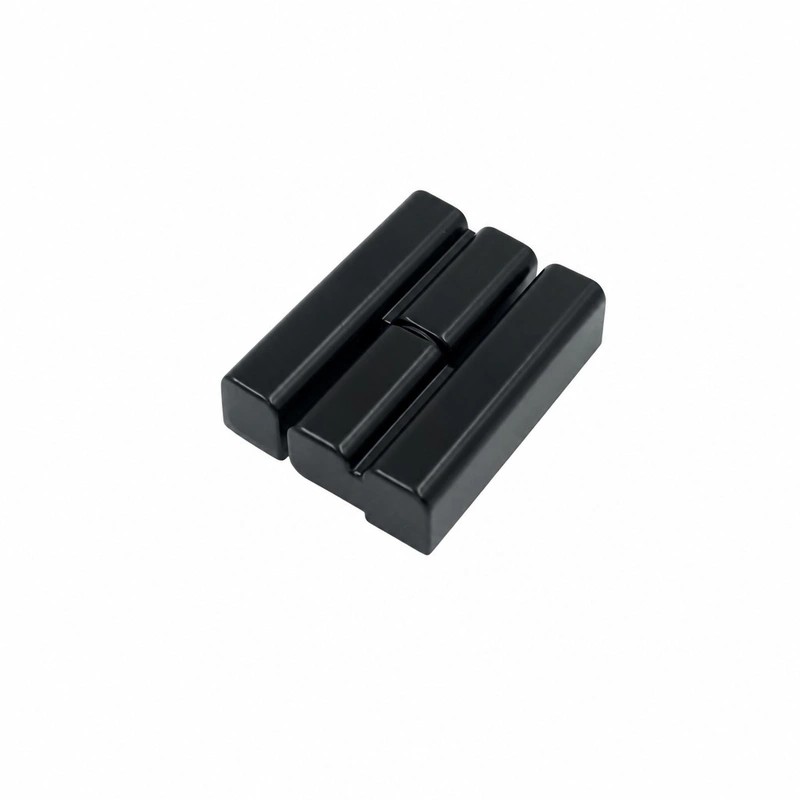

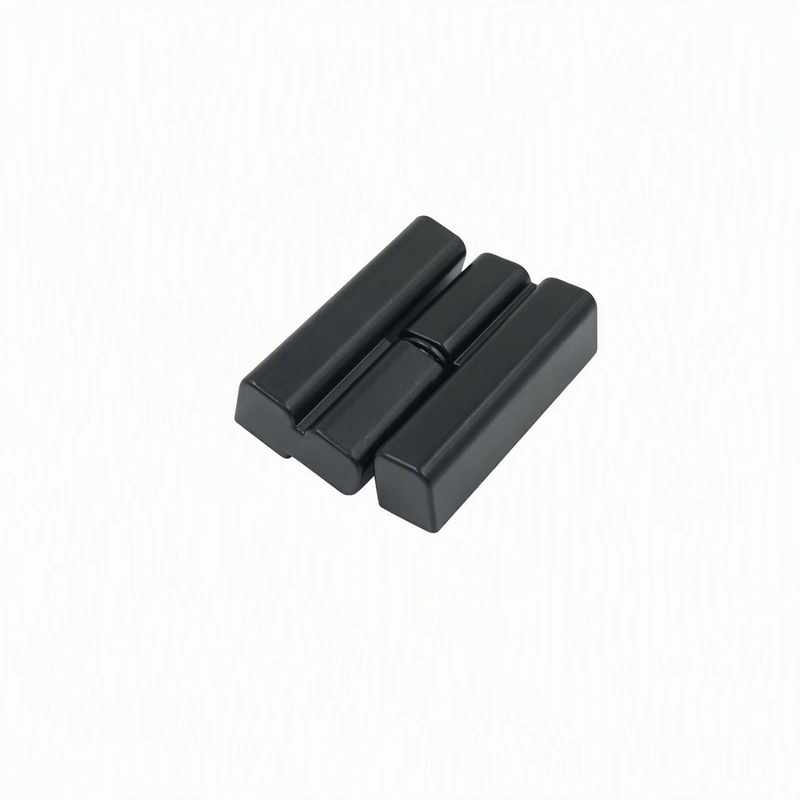

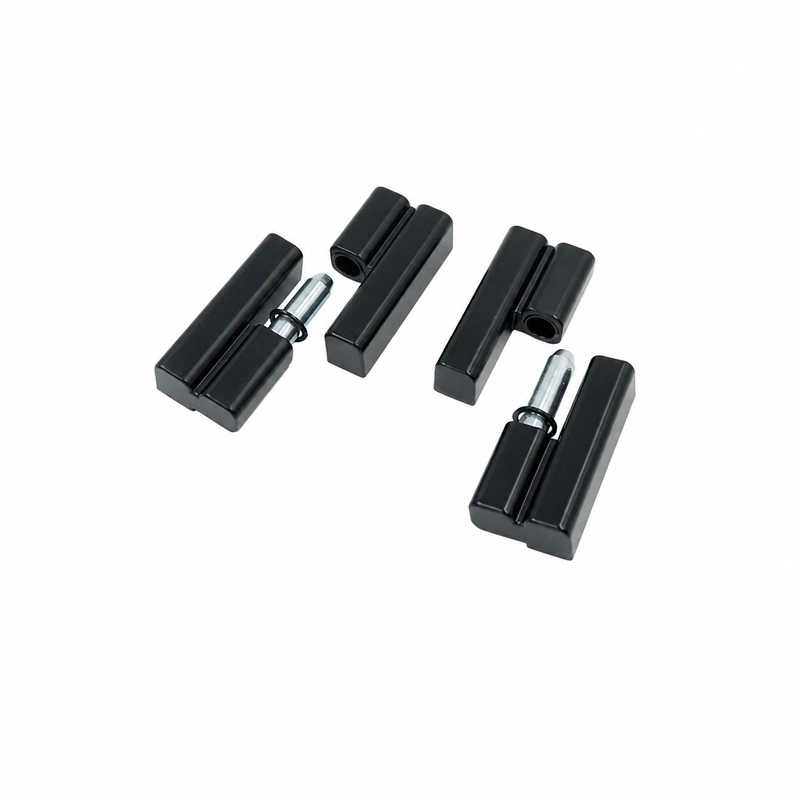

Concealed Hinge 180° Opening Heavy-Duty hinge CL203-3

The CL203-3 Concealed Hinge is a robust and versatile solution designed for industrial and commercial applications. Featuring a symmetrical structure, it supports 180° wide opening for left or right door configurations, enhancing operational flexibility. Manufactured from durable zinc alloy and reinforced with PA (polyamide) pads, this hinge ensures long-lasting performance and stability under demanding conditions.
get a quote

Concealed Hinge

180° Opening Heavy-Duty hinge CL203-3



Material and Finish

  • Material: High-strength zinc alloy with PA pads for enhanced durability.
  • Surface Finish:
    • Black matte
    • Black light gloss

    • Key Features

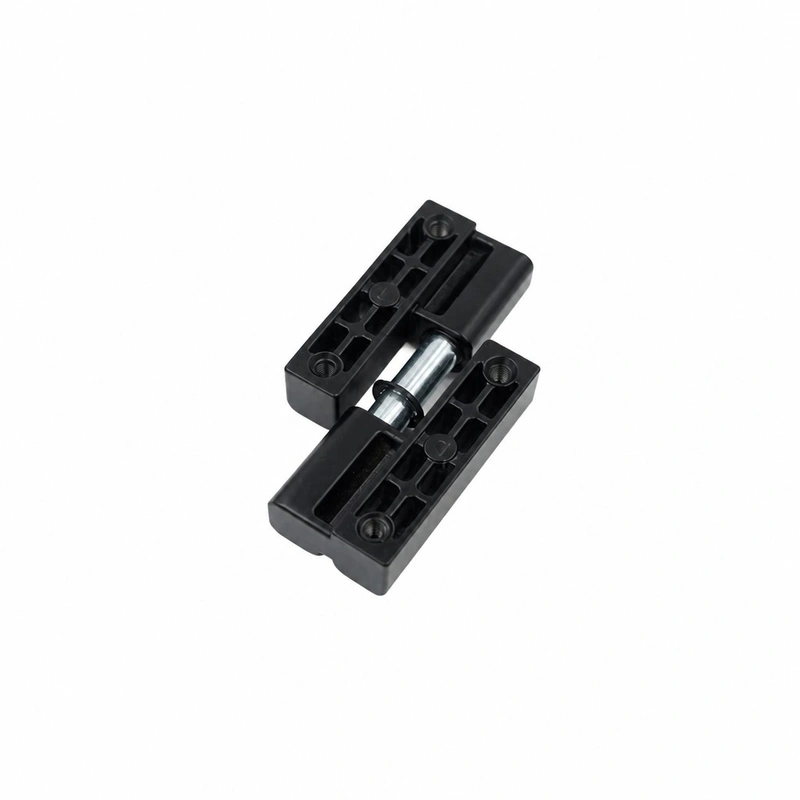

      • Opening Range: 180° rotation for convenient access.

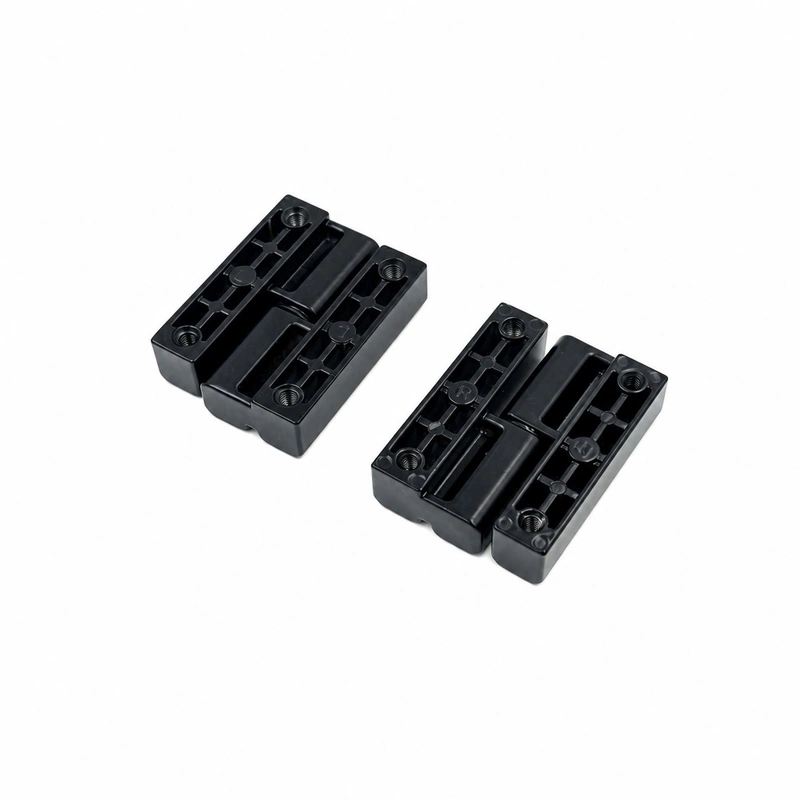

      • Symmetrical Design: Left-hand (CL203-3-Z) and right-hand (CL203-3-Y) door compatibility.
      • High Load Capacity: Radial load of 3300N and axial load of 880N.

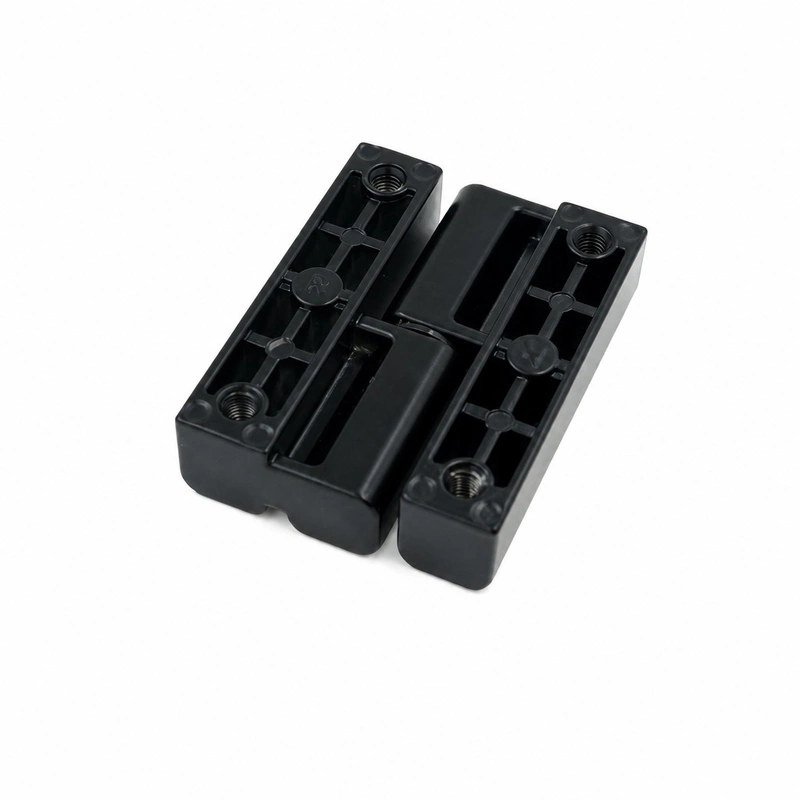

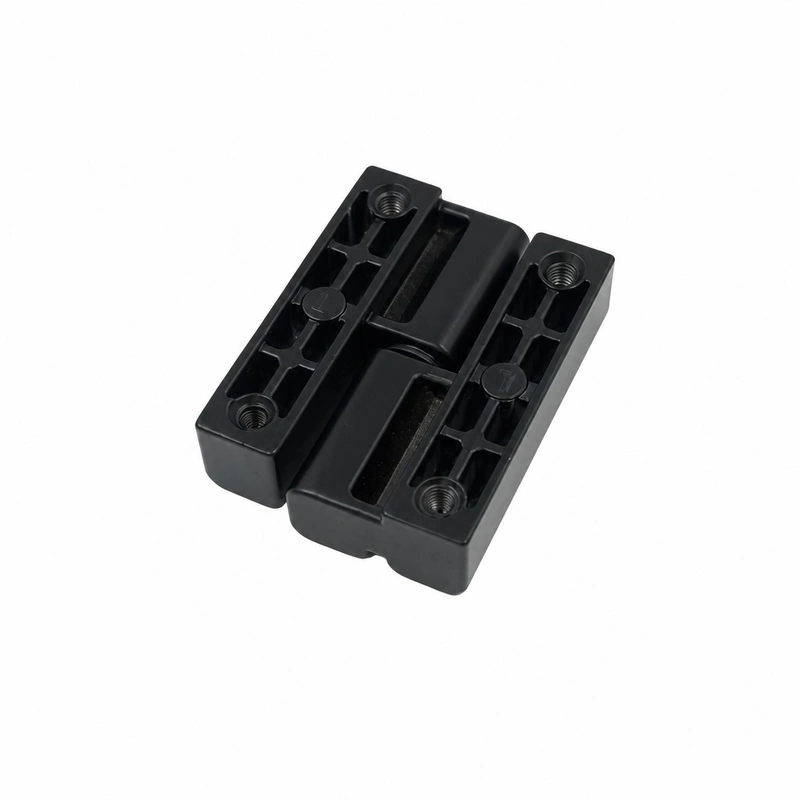

      • Precision Design: Secure mounting holes and reliable structural integrity.

      Specifications

      CL203-3 Heavy-Duty Concealed Hinge, 180° Opening

      • Dimensions: 64 mm × 50 mm, with mounting hole spacing as per the diagram.
      • Variants:
        • Black Light Gloss: CL203Z1A008 (Left), CL203Z1A009 (Right)
        • Black Matte: CL203Z1B015

      Applications

      This hinge is suitable for:

      • Industrial equipment covers
      • Electrical enclosures
      • Machinery panels
      • Access hatches and doors requiring durability and stability
      • htlock factory htlock factory htlock Application

      Keywords

      CL203-3, heavy-duty concealed hinge, 180° rotation hinge, symmetrical hinge, zinc alloy hinge, black matte hinge, industrial enclosure hinge, machinery access hinge, radial load 3300N hinge, axial load 880N hinge.
